2022 Durango Features

2022 Décor

•

  Barista

•

  Cobblestone

•

  Cher Oak/Hoppy Ash

Top Features

•

  Sweeten the deal with upgrades, like heat and massage theater seating, full-size 12 CU FT refrigerator or off-the-grid solar package. (D348BHF shown)

•

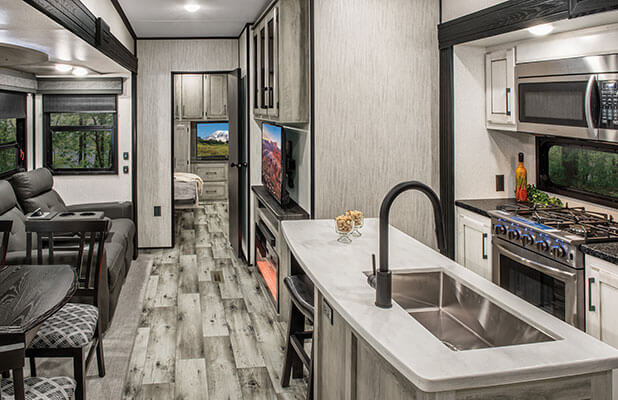

  Perks of home sweet home including modern farmhouse cabinetry, solid-surface countertops, stainless steel sink and appliances. (D348BHF shown)

•

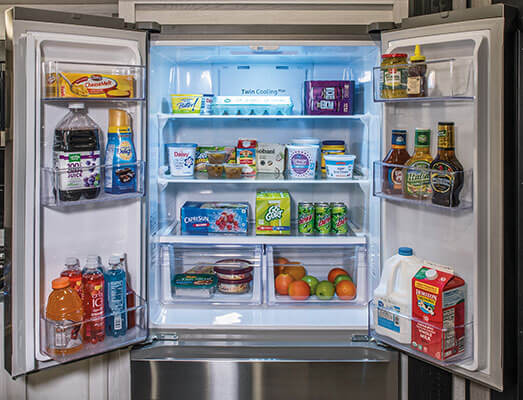

  Optional 18 CU FT residential refrigerator with temperature controls and easy slide out freezer drawer below.

•

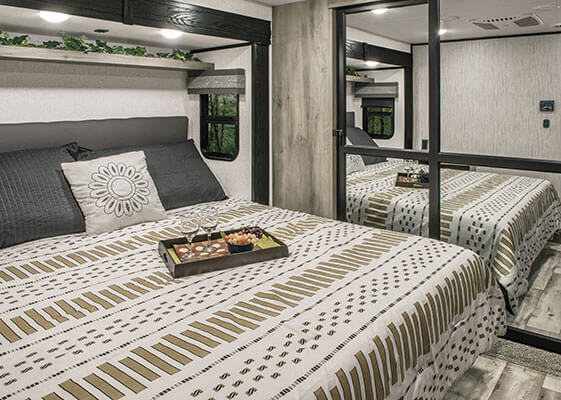

  Luxury bedroom features a 70 x 80-inch king bed, overhead storage, USB ports, outlets and oversized light switches are all within easy reach. (D348BHF shown)

•

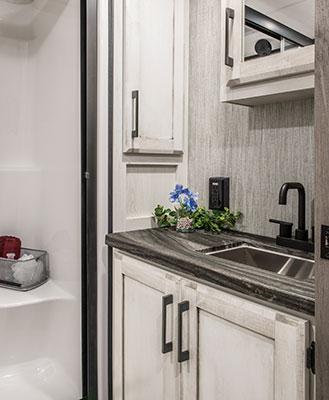

  Bathroom has stainless steel sinks and plenty of drawer and cabinet space. (D348BHF shown)

•

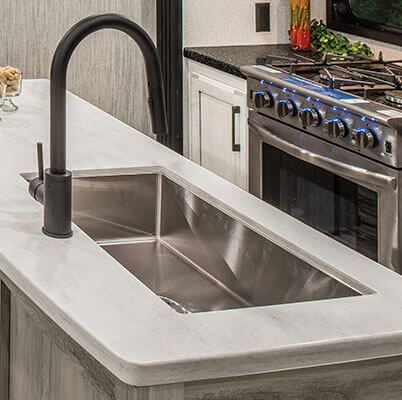

  Stainless steel sink with spring sprayer faucet and seamless solid-surface countertops.

•

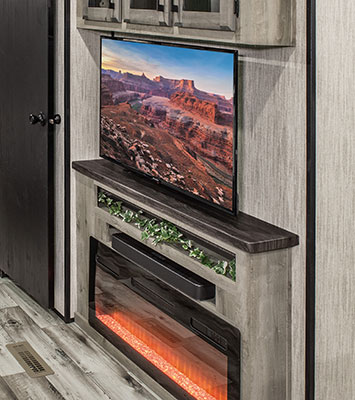

  Smart LED TV, JBL 2.0 soundbar with Bluetooth wireless connectivity and cozy ambience from the 40-inch wide-view fireplace. (D348BHF shown)

•

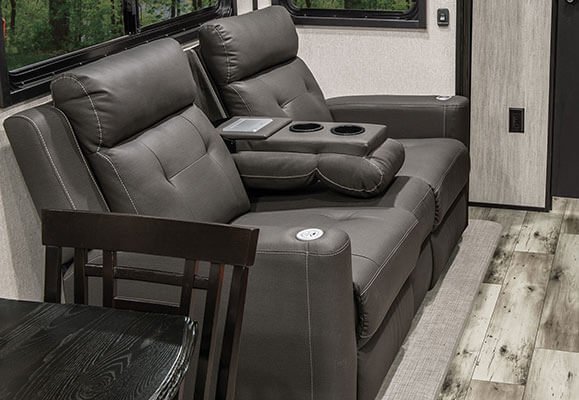

  Theater seating with cupholders, USB plug, heat, massage and power recline/decline.

•

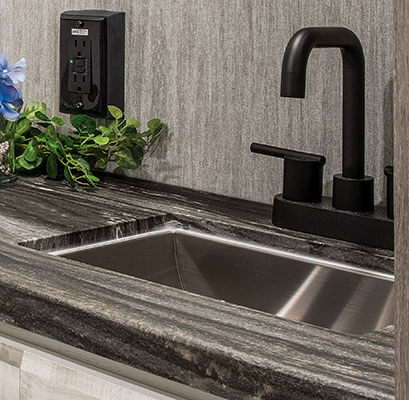

  Stainless steel bath sink with high-rise faucet.

•

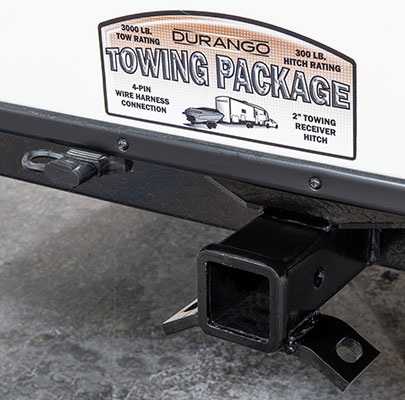

  The Durango Towing Package features a 3,000 LB tow rating, 300 LB hitch rating, 4-pin wire harness connection and 2" towing receiver hitch.

•

  Heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear! R-13* sidewalls, R-38* roof and floor.
  *Calculated R-Value

•

  KZ Engage is powered by OneControl with a 5" screen. The control system monitors tank and battery levels, controls the sliderooms, leveling system, awnings, and inside/outside lighting.

•

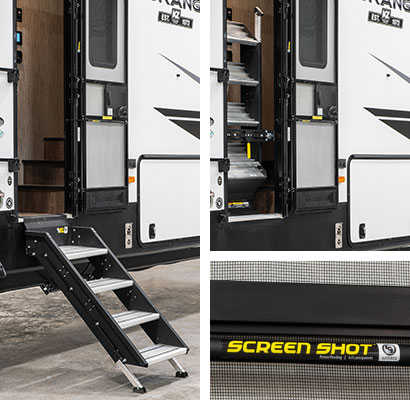

  Standard flip-up entry step provides solid footing, coming and going. Handy friction hinge and screenshot auto-door-close feature.

•

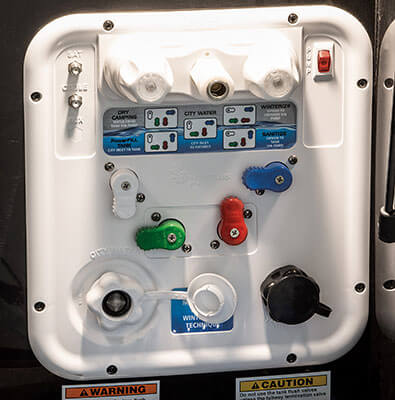

  Centralized command center is well-lit, heated & all systems are conveniently located.

•

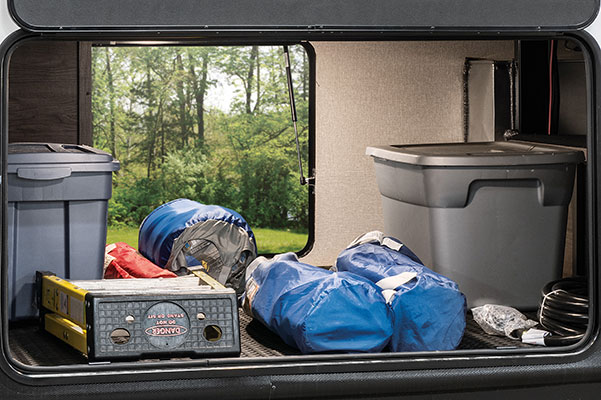

  140 CU FT basement storage featuring motion-light.

•

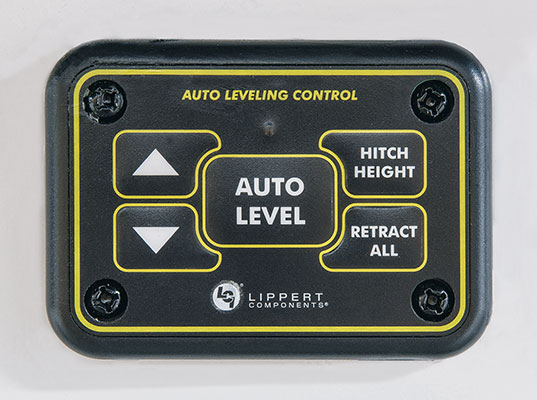

  Standard 4-point auto-leveling does all the work.

•

  5/8" tongue & groove plywood.

•

  8-lug, heavy-duty, 16-inch aluminum wheels with E-range tires (G-range on select models).

•

  Two attic vents are in each RV, providing vital escape routes for unwanted moisture that accumulates during use.

•

  The KZ True 2 Warranty is a 2-year hitch-to-bumper limited warranty that’s true to its name. The gold standard in RV protection, True 2 provides double the coverage of the industry norm. Plus, our warranty is backed by the craftsmanship and quality we’re known for, so you can Go. Camp. Live. Wherever your adventure takes you, know that you’re covered in your KZ.

Standards and Options

• Construction Features

  • Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage
  • R-13* 2" Block Foam Bonded Sidewalls w/EGS Metal Backing Strips (to support all int. cabinets)
  • Lamilux® Gelcoat Fiberglass - lamilux.com/composites/products/basic-requirements/high-gloss.html
  • Fully-Insulated Sliderooms - lci1.com/slide-outs
  • 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/Lifetime Warranty - More Info
  • 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
  • Fully-Vented Attic System
  • Completely Heated Water System
  • Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drainlines are located above all insulation)
  • Fully Heated & Enclosed Underbelly
  • Radius Front Cap (for increased turning radius on short bed trucks)
  • Extra-Reinforced Heavy-Duty Front Fiberglass Cap
  • All-Weather Insulation Package (upgrades roof, floor, ceiling, endcaps & tanks to R-38*)

• Exterior Features

  • Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers - dexteraxle.com/Products/Sprung-Axles/Light-Duty
  • 8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Nitrogen-Filled Radial Tires (G-range on select models)
  • 100% Exterior LED Running Lights & Taillights
  • LED Front Docking Light & Sewer Hookup Light
  • Electric Power Awning w/LED Light Strip - lci1.com/products/rv-supplier/rv-and-trailer-awning-solutions
  • (2) 30 LB. Propane Bottles on Same Side of Coach for Easy Access
  • Side-Mounted Sealed Battery Compartment
  • Partially Painted Front Cap
  • 50 AMP Service w/Marine Power Cord
  • 15,000 BTU Ducted Roof A/C w/Pre-Wire for Optional 15,000 BTU Bedroom A/C
  • 3" x 14" Foam-Core In-Floor Straight-Line Heating System w/35,000 BTU Furnace
  • Deluxe Heated Water Convenience Center (includes black tank flush, power fresh tank water fill, winterizing system, outside shower)
  • Fully-Finished, Heated & Sealed Basement Storage Compartment
  • Swing-Away Assist Grab Handle
  • Roof Ladder
  • No-Slide Rubberized Basement Flooring
  • Dual Lock Basement Storage Slam Latches
  • Satellite Pre-Wire (roof & ground)
  • Pre-Wire for Exterior TV
  • Full-Perimeter Rain Gutter System (incl. rear & additional gutters over sliderooms)
  • LP Quick Connect
  • Undermount Spare Tire

• Living Room/Kitchen Features

  • Solid-Surface Kitchen Countertops & Sink Covers w/Large Handholds
  • Residential Stainless Steel Sink
  • Pullout High Arching Faucet
  • Heavy-Duty 100 LB Drawer Glides on Every Drawer
  • Baltic Birch Drawer Boxes
  • Kitchen Window (most models)
  • All-Wood Lumber Core Screwed Cabinets w/Hardwood Doors
  • 5" Brushed Nickel Cabinet Hardware
  • XL Toggle Light Switches
  • Large Ceiling Crown Molding
  • All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
  • Deluxe Residential-Style Furniture
  • HD Flat Panel TV w/Swing Arm Bracket & Storage behind TV (most models)
  • Adjustable Pantry Shelves (where applicable)
  • All Kitchen OH Cabinets Include Shelf
  • 4" High Density Foam Cushions on all Booth Dinettes
  • Ceiling Fan (where applicable)

• Bathroom/Bedroom Features

  • Residential One-Piece Fiberglass Shower Stall w/Built-in Seat & Glass Doors
  • Shower Skylight
  • Porcelain Foot-Flush Toilet
  • All LED Lights in Bed & Bath w/Multiple Large Switches
  • Vent Fan in all Baths
  • Large Linen Closet in Every Bathroom
  • One-Level, Full-Height Bedrooms
  • Padded Headboard w/Power Outlet Near Bed
  • XL Under-Bed Storage
  • Luxurious Bedspread
  • Dual Drawers, Large Hanging Space
  • Washer & Dryer Prep in Front Closet
  • Bedroom TV Pre-Wire

• Options

  • Exterior

    • 2nd Ducted A/C (15,000 BTU)
    • Dual Pane Frameless Windows
    • Wireless Backup Camera System - Observation & Vision S
    • “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")
    • Premium “Off the Grid” Solar Package Powered by Xantrex (now features 440W total solar power – we use (2) 220W solar panels tied in series because they produce more power than just (1) 440W solar panel)
    • Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
    • Generator Prep (includes start/stop harness)
    • 5.0KW LP Onan Generator (requires prep)
    • 2nd LED Lighted Power Awning (mandatory D301RLT, D333RLT, D343MBQ, D348BHF)
    • 32" Exterior TV w/Bracket
    • 30A MPPT Solar Charge Controller w/MPPT Remote Panel (produces 30% more increased power from the solar panel, & it’s 70% more efficient over the competition’s PWM controller). Also Able to Determine Lithium or Lead Battery Type to Maximize Performance

  • Interior

    • 32" Bedroom LED TV

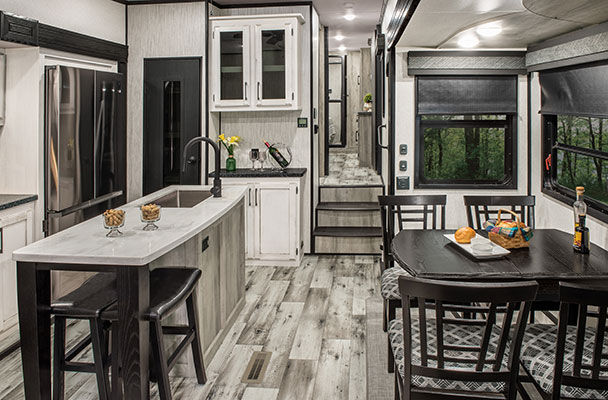

    • F/S Dinette Table & 4 Chairs IPO Dinette
    • Theater Seating w/Heat & Massage Features IPO Tri-Fold HAB (D348BHF)
    • 18 CU FT House Residential Refrigerator w/2,000W Inverter (18 CU FT) IPO 12 CU FT Gas/Electric Refrigerator (N/A D348BHF & CSA option)
    • Power Vent Fan in Bathroom
    • Power Vent Fan in Bunk Bathroom (mandatory D348BHF)
    • Serta Comfort Foam 60" x 80" Queen Mattress
    • Hide-A-Bed Sofa IPO Lower Bunk (mandatory D348BHF)
    • 18 CU FT Samsung House Refrigerator IPO 12 CU FT Gas/Electric Refrigerator (all models). Works w/“Off the Grid” Solar Packages

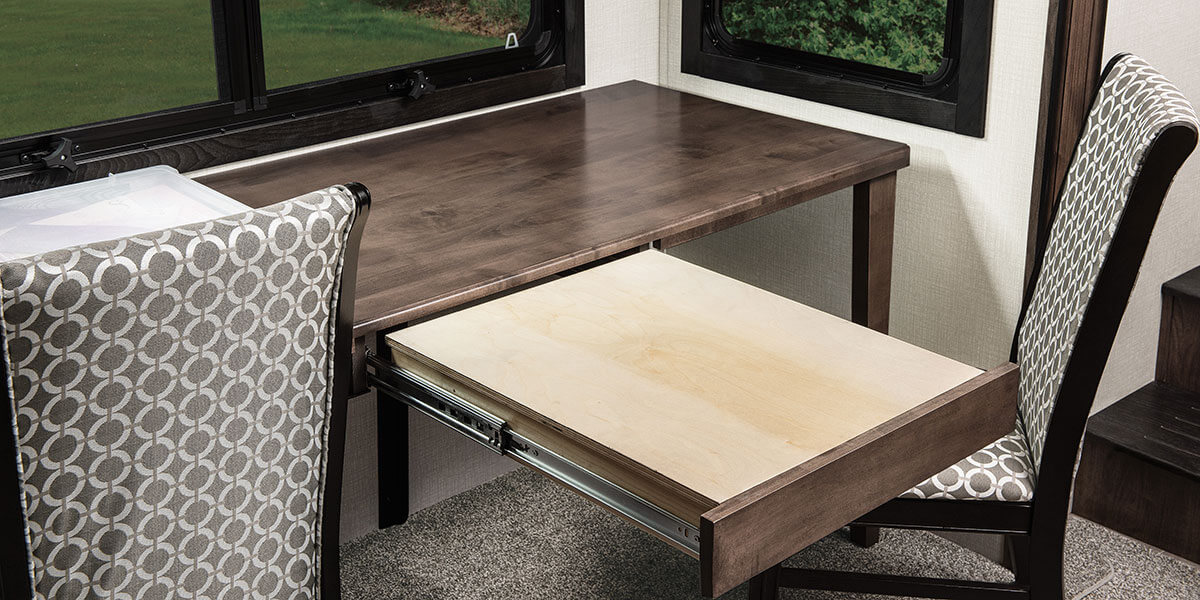

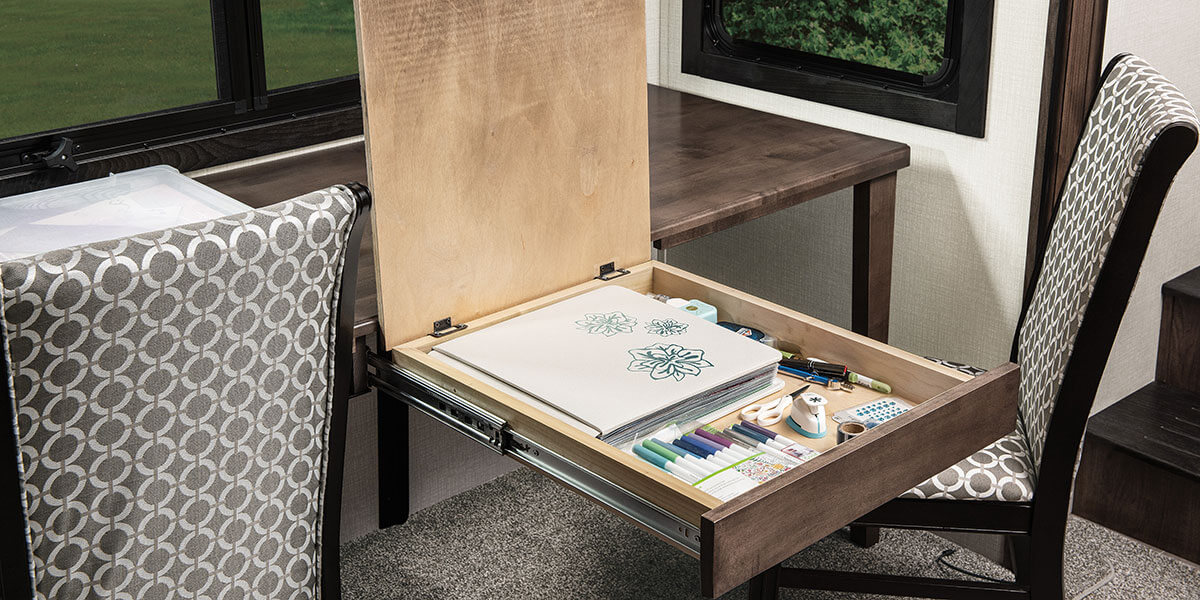

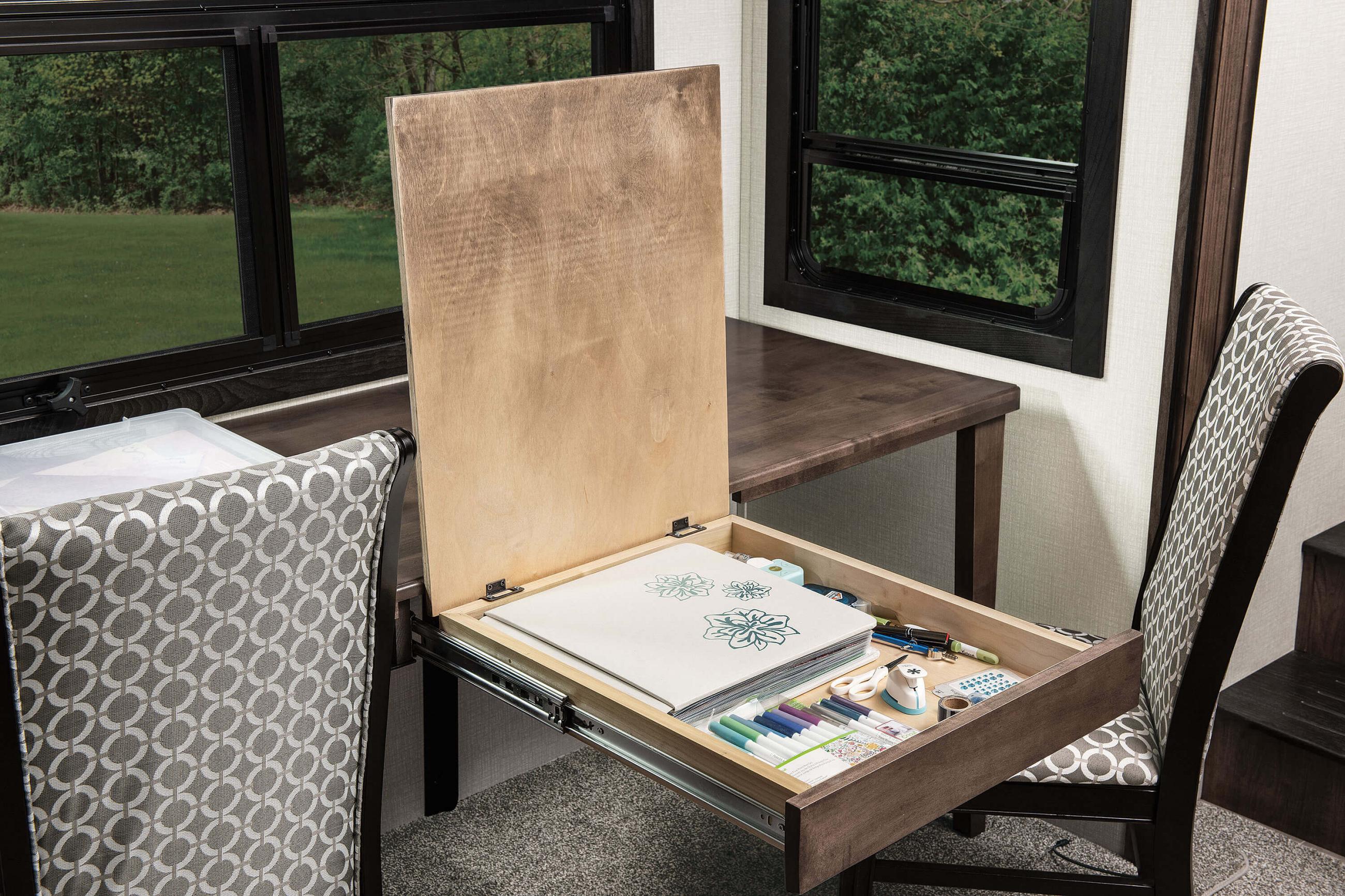

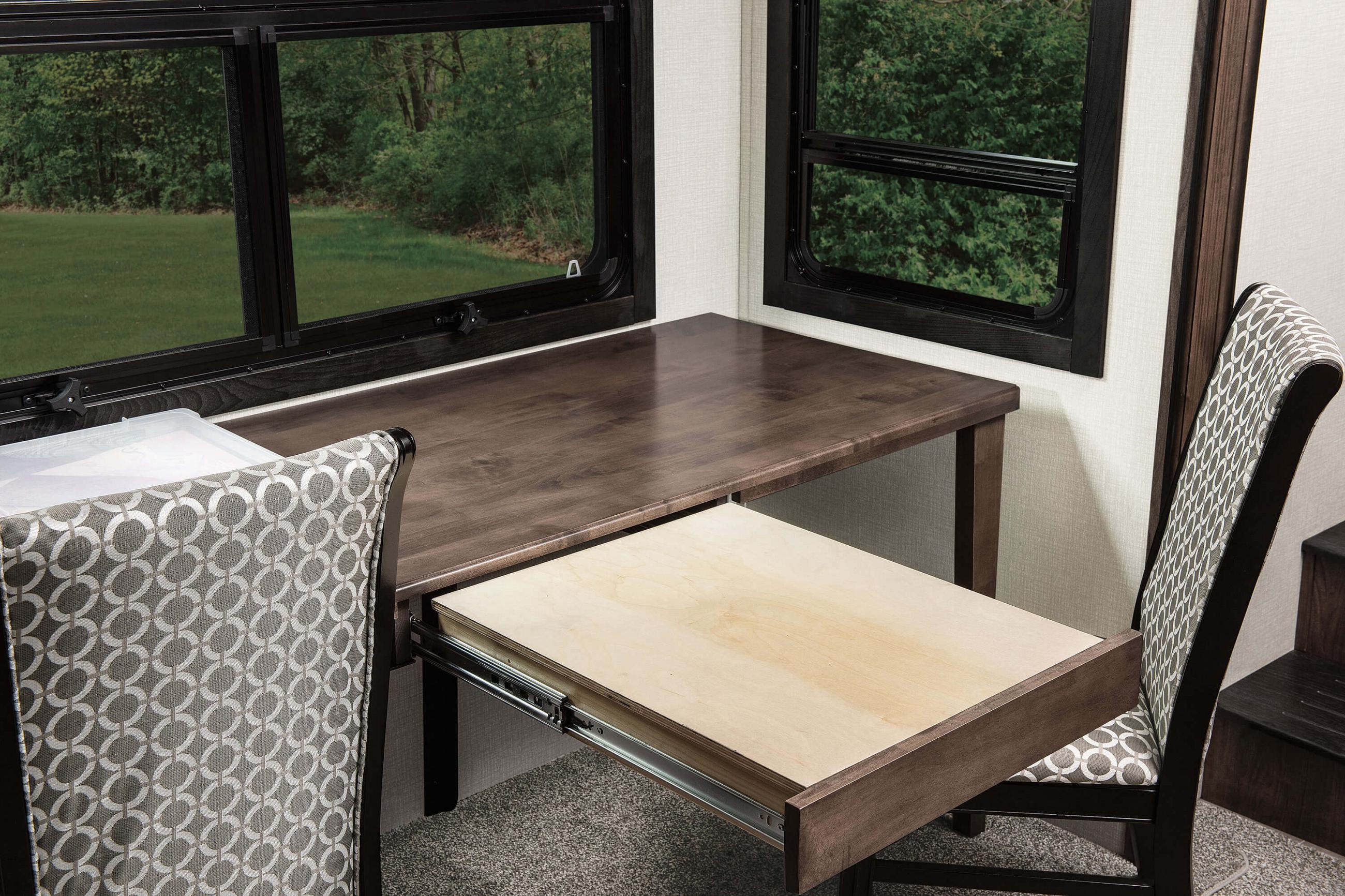

    • Full-Timer’s Hardwood Desk IPO Dinette Table
    • 2,000W Pure Sine Wave Inverter Making All General & GFI Outlets “Hot” (plus, it will include a Xantrex 240AH lithium battery w/Bluetooth app controls)

• KZ Advantage Package (mandatory)

  • Exterior

    • 4 Point Auto Electric Leveling
    • Polar White Gelcoat Exterior Fiberglass
    • Painted Fiberglass Front Cap
    • 5-Sided Aluminum Framing
    • Flip-up Entry Steps (main entry)
    • 50 AMP Service w/2nd A/C Prep
    • 15K Ducted A/C
    • 5/8" Tongue & Groove Plywood Floor
    • Key-Alike for Baggage & Entry Doors
    • Friction Hinge Entry Door w/Shade Prep & Screenshot Features
    • X-Large Folding Grab Handle
    • Power Front Jack
    • Undermount Spare Tire
    • Equa-Flex Suspension
    • Nitrogen-Filled Tires
    • Battery Disconnect
    • Black Tank Flush
    • Backup Camera Prep
    • Roof-Mounted Solar Prep w/Connection
    • All-Weather Insulation Package (heated, enclosed & insulated underbelly, plus foil in floor, roof, front, rear)
    • 2" Towing Receiver Hitch w/4-Pin Wire Harness Connection (3,000 LB tow rating & 300 LB hitch rating)
    • Roof Ladder
    • (2) Attic Vents
    • Leash Latch w/Bonus Beverage Opener
    • Metal Latches on Baggage Doors

  • Interior

    • Modern Farmhouse Cabinetry
    • Luxury Woven Vinyl Flooring in Slideouts (marine grade)
    • Solid Hardwood Slideout Fascia
    • Solid-Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
    • Trash Can under Sink
    • 24" Oven w/4-Burner Range
    • 30" Convection Microwave
    • Kitchen Skylight w/Shade
    • Power Vent Fan in Main Area
    • 36" Pullout Storage Bins in Booth Dinette
    • Tri-Fold HAB Sofa
    • (3) Motion Sensor Lights (entry, closet, basement)
    • 40" Wideview Fireplace
    • 43" Smart LED TV
    • JBL 2.0 Sound Bar w/Bluetooth
    • 12V Dual USB Charging Station
    • Night Roller Shades
    • Porcelain Foot-Flush Toilet
    • Stainless Steel Bathroom Sink
    • Plywood Bed Base
    • Serta Comfort Foam 70" x 80" King Mattress
    • Legless Table Base for Dinette Table & Chairs (select models)
    • Pocket Door for Bathroom
    • Soft Auto-Close Drawer Glides
    • RV Airflow System - A/C

• KZ Convenience Package (mandatory)

  • Exterior

    • KZ Engage Powered by OneControl w/5" Screen (control system monitors tank levels & battery levels, controls sliderooms, leveling system, awnings, inside/outside lighting & includes TPMS system prep, power awning w/LED light strip)
    • 16" Tires w/Aluminum Wheels
    • Magnetic Catches for Baggage Doors
    • Omnidirectional HDTV Antenna w/Wi-Fi Prep

  • Interior

    • 12 CU FT Gas/Electric Refrigerator w/Temperature Controls
    • Matte Black Residential Kitchen Faucet w/Spring Sprayer
    • Surfex Wood Step in Hallway
    • Wood Accent Trim on Corners/Entry Doors
    • Electric Outlet in Bunk Area
    • Vision S Prep (blind spot monitoring)
    • On-Demand Tankless Water Heater - More Info
    • Lithium Battery Ready
    • JBL Flip 5 Bluetooth Speaker w/Locking Wall-Mount in Basement Storage Area

• Bonus Features

  • 2-Year Limited Warranty (see flyer)
  • Lightest high-profile, wide body, luxury fifth wheels in the industry (average weight is 11,100 LBS)
  • KZ has received the Dealer Satisfaction Index Award for 20 years
  • KZ’s over 50 years of stable, dedicated manufacturing experience, coupled with its predominant Amish workforce, heritage and commitment to superb quality, allow us to produce the best value luxury fifth wheel available.

*Calculated R-Value

Due to continual research and advances, manufacturer reserves the right to change specifications, design, price, and equipment without notice, and assumes no responsibility for any error on this website. Some items shown are not included as standard or optional equipment.
