2021 Venom V-Series Features

2021 Décor

•

  Barista

•

  Cobblestone

•

  Gorce Maple

Top Features

•

  Two attic vents are in each RV, providing vital escape routes for unwanted moisture that accumulates during use.

•

  E-Track universal track system with different fittings that allow you to quickly snap in and secure your load.

•

  Heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear! R-11 sidewalls, R-38 roof and floor.

•

  Lithium-ready charging station includes a dual converter, which allows you to choose between lithium or lead batteries with the flip of a switch!

•

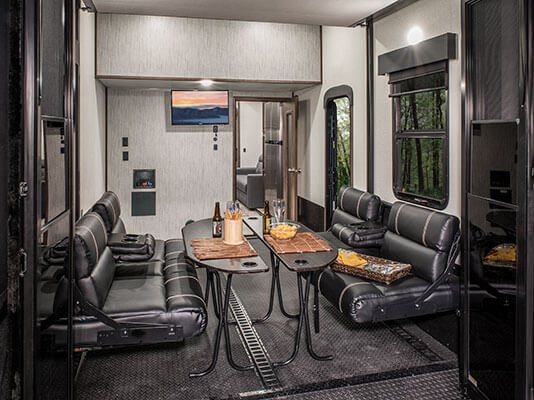

  Quickly transform the garage from hauling your toys into a lounge area and a roomy bedroom, with optional 60 x 84-inch sit-and-sleep power bed. Add options like ramp door patio rails, three season patio door. (4113TK shown)

•

  Tufflex Roofing by Dicor Products with 20-year warranty! More Info

•

  The KZ True 2 Warranty is a 2-year hitch-to-bumper limited warranty that’s true to its name. The gold standard in RV protection, True 2 provides double the coverage of the industry norm. Plus, our warranty is backed by the craftsmanship and quality we’re known for, so you can Go. Camp. Live. Wherever your adventure takes you, know that you’re covered in your KZ.

Standards and Options

• Construction Features

  • 101" Wide-Body Construction
  • Extra-Reinforced, Heavy Duty, High-Gloss Front Cap
  • Radius Aerodynamic Front Cap (provides better turning radius & increased fuel economy)
  • 2" x 3" Fully Welded Aluminum Floor Joists
  • 2" x 2" Fully Welded Aluminum Sidewall Framing
  • Lamilux® Gelcoat Fiberglass www.lamilux.com/composites/products/basic-requirements/high-gloss.html
  • Double-Insulated & Heated Holding Tanks (R-38 above & below tanks)
  • R-11 2" Sidewalls (w/EGS metal backing strips to hold up all interior cabinets)
  • 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/20-Year Warranty - More Info
  • Fully Vented Attic System
  • 3/8" Roof Decking (fully walkable)
  • 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Deck
  • Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains are located above all insulation)
  • Fully-Enclosed & Heated Underbelly w/Directly Heated Holding Tanks

• Exterior Features

  • 7,000# Dexter® Axles w/Auto-Adjusting Brakes www.dexteraxle.com/products/sprung-axles/light-duty/5500-7000-lb-capacity www.dexteraxle.com/resources/videos/nev-r-adjust-brakes
  • 8-Lug Heavy-Duty Aluminum Rims w/16" G-Range Nitro-Filled Radial Tires
  • 100% Exterior LED Running Lights, Taillights & Backup Lights
  • Electric Power Awning w/LED Lights www.lci1.com/smart-arm
  • Propane Bottles (2 x 30 LBS) on Same Side of Coach for Easy Access
  • Side Slam Latch Baggage Doors (where applicable) w/Magnet Catches for Full Access to Storage
  • 3" x 14" In-Floor Straight Line Heating System w/35,000 BTU Furnace
  • Ramp Door LED Lighting
  • LED Docking Light & Sewer Hookup Light
  • Dual Swing-Away Assist Grab Handle
  • Underneath Spare Tire w/Hoist
  • Roof Ladder
  • Heated Water Convenience Center (includes black tank flush, power fresh tank water fill, winterizing system, outside shower)
  • Fully-Finished, Heated & Sealed Basement Storage Compartment (only available w/All-Weather Insulation PKG)
  • Heated & Enclosed Dump Valves
  • Satellite Pre-Wire in Both the Convenience Center & Roof
  • LED Lighted Outside Speakers
  • LP Quick Connect

• Living Room/Kitchen Features

  • Built-In Silverware Drawer
  • Storage Shelf under Kitchen Sink
  • All Kitchen OH Cabinets have Shelf & Extra-Tall Slide Lips
  • Heavy-Duty 100# Drawer Glides on Every Drawer
  • Baltic Birch Drawer Boxes
  • Decorative Lighting above Many Cabinets
  • Window in Kitchen (in most models)
  • 5" Stainless Steel Cabinet Hardware
  • Window Roller Shades Throughout
  • 3/8" Re-Bond Carpet Pad w/22 OZ Residential Carpet
  • Stainless Steel Appliances
  • Extra-Large Light Switches
  • Ceiling Crown Molding
  • 100% LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
  • Deluxe Residential-Style Furniture
  • Living Room HD Flat Panel TV on Bracket (includes exterior mount)

• Garage/Ramp Area Features

  • Built-In Dovetail
  • Garage Entry Door (model specific)
  • (2) Garage Ceiling Speakers

• Bathroom/Bedroom Features

  • Skylight Over Shower
  • Porcelain Foot-Flush Toilet
  • Extra-Wide Hall (going up into bedroom & pocket door from hall into the bathroom – most models)
  • Towel Bar in Bathroom (where applicable)
  • 12V Fan in Bathroom
  • Extra-Large Under-Bed Storage
  • Luxurious Bedspread
  • Padded Headboard w/Hidden Storage

• Options

  • Exterior

    • 3rd 15K BTU Ducted A/C
    • Dual Pane Windows (frameless)
    • Wireless Backup Camera System - Observation & Vision S

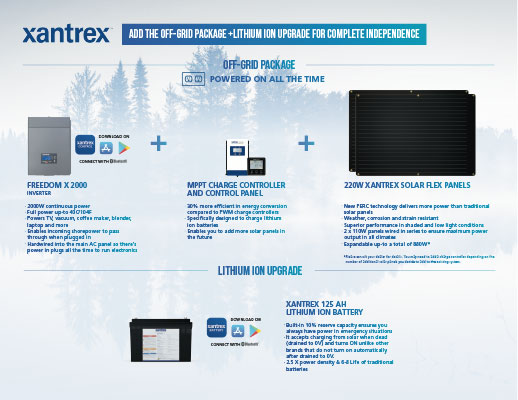

    • “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")*
    • Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
    • Roto Flex Rubberized Pin Box
    • 2nd LED Lighted Power Awning
    • Party Patio Package (railing only)
    • Three Season Patio Door IPO Screen Wall
    • 7.0KW Gas Onan Generator
    • 32" Exterior TV w/Bracket

  • Interior

    • 32" Bedroom LED TV
    • House Residential Refrigerator w/2,000W Inverter IPO 12 CU FT Gas/Electric Refrigerator (N/A CSA option)
    • Power Vent Fan in Bathroom
    • Power Vent Fan in Garage (N/A 3rd A/C option)
    • Serta Comfort Foam 60" x 80" Queen Mattress (electric tilt)
    • Central Vac System
    • Happi-Jac Power Bed w/Roll Over Sofas & Table
    • *Cannot get House Residential Refrigerator w/“Off the Grid” Solar Package

• KZ Advantage Package (mandatory)

  • Exterior

    • 6-Point Electric Auto Leveling
    • Polar White Gelcoat Exterior Fiberglass
    • Partial Painted Fiberglass Front Cap
    • 6-Sided Aluminum Framing
    • Zero-G Ramp Door
    • Flip-Up Entry Steps (main entry)
    • 50 AMP Service
    • (2) 15K Ducted A/Cs
    • 5/8" Tongue & Groove Plywood Floor
    • Key-Alike for Baggage & Entry Doors
    • Friction Hinge Entry Door w/Shade Prep
    • Screenshot Feature on Entry Door
    • X-Large Folding Grab Handle
    • Undermount Spare Tire
    • Equa-Flex® Suspension
    • Nitrogen-Filled Tires
    • Battery Disconnect
    • Black Tank Flush
    • Backup Camera Prep
    • Roof Mounted Solar Prep w/Connection
    • All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
    • Roof Ladder
    • Fully Vented Attic System w/2 Attic Vents
    • Toy Lok®
    • Generator Prep w/30 GAL Fuel Tank & Pump Station
    • Retractable Screen Wall
    • Leash Latch w/Bonus Beverage Opener
    • Metal Latches on Baggage Doors

  • Interior

    • Luxury Woven Vinyl Flooring in Slideouts (marine grade)
    • Maple Glazed Cabinetry
    • Glazed Solid Hardwood Slideout Fascia
    • Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
    • Trash Can Under Sink
    • Drop-In Cooktop w/Glass Cover & Oven
    • 30" Convection Microwave
    • Kitchen Skylight w/Shade
    • Power Vent Fan in Main Area
    • Super Sofa (select models)
    • (3) Motion Sensor Lights (entry, closet, basement)
    • 40" Wideview Fireplace
    • LED TV
    • Multiple Media Stereo w/DVD/Bluetooth
    • 12V Dual USB Charging Station
    • Night Roller Shades
    • Residential Walk-In Shower
    • Porcelain Foot-Flush Toilet
    • Stainless Steel Bathroom Sink
    • Plywood Bed Base
    • Serta Comfort Foam 70" x 80" King Mattress (electric tilt)
    • E-Track Tie-Down System in Cargo Area
    • Pocket Door for Bathroom
    • Soft Close Drawer Guides
    • Washer/Dryer Prep in Bedroom

• KZ Convenience Package (mandatory)

  • Exterior

    • KZ Engage Powered by OneControl w/5" Screen (Control System monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, inside/outside lighting & includes TPMS system prep)
    • Power Awning w/LED Light Strip
    • 16" Tires w/Aluminum Wheels
    • Magnetic Catches for Baggage Doors
    • Omnidirectional HDTV Antenna w/Wi-Fi Prep
    • LED Lights in Exterior Speakers

  • Interior

    • Residential Grade Linoleum
    • 12 CU FT Gas/Electric Refrigerator w/Temperature Controls (8 CU FT gas/electric refrigerator in 2913, 3214 only)
    • Matte Black Residential Kitchen Faucet w/Spring Sprayer
    • Surfex Wood Step in FW Hallway
    • Wood Accent Trim on Corners/Entry Doors
    • (2) Bar Stools (island models)
    • Vision S Prep (blind spot monitoring)
    • On-Demand Tankless Water Heater - More Info
    • Lithium Battery Ready

• Bonus Feature

  • 2-year Limited Warranty (see flyer)
  • One of the lightest weight high-profile, wide-body, luxury Toy Hauler fifth wheels in the industry
  • KZ RV has won the coveted DSI award 20 years
  • KZ RV’s over 50 years of building experience, coupled with its stable and dedicated Amish workforce and commitment to superb quality, and low overhead, allows us to produce the lowest-priced fully-featured fifth wheel available

Due to continual research and advances, manufacturer reserves the right to change specifications, design, price, and equipment without notice, and assumes no responsibility for any error on this website. Some items shown are not included as standard or optional equipment.
