2021 Venom Features
2021 Décor
-
Barista
-
Cobblestone
-
Gorce Maple

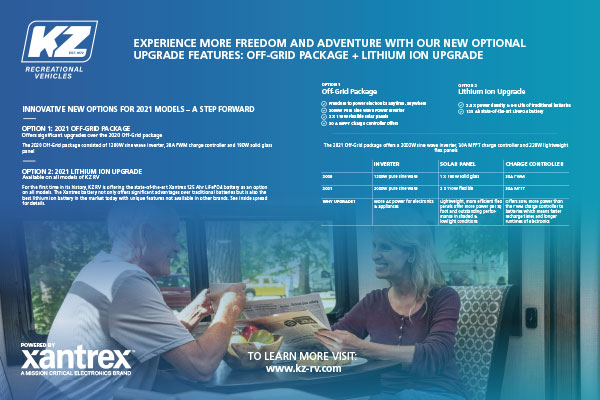

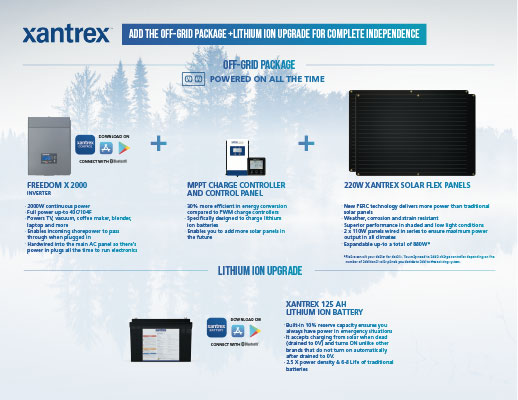

“Off the Grid” Solar Package
Taking our solar power package to the next level. Roof mounted solar prep standard. Optional “Off the Grid” package powered by Xantrex includes 220W panels, 30A MPPT solar charge controller with MPPT remote panel and 2,000W pure sine wave inverter making all electrical outlets “hot.”
- The roof solar prep connection (above) makes it a breeze for our dealers to install solar panels.
- We use (2) 110 watt solar panels tied in series because they produce more than just (1) 220 watt solar panel.
- MPPT charge controller produces 30% more power from the solar panel and it’s 70% more efficient than the PWM controller that our competition uses. We are also able to determine battery type, lithium or lead, to maximize performance.
- 2,000 watt pure sine wave inverter making all general and GFI outlets “hot.”
- Plus add on our new optional Xantrex 125AH lithium battery w/Bluetooth app controls. App monitors charge rate, discharge rate, and current level in battery.
- Xantrex lithium battery has a safety. It shuts down at 10% as a safety battery reserve.
- No jump-starting this Xantrex lithium battery when it’s dead like all the other lithium batteries on the market. Our Xantrex solar system will “wake it up” and charge back to 100%.
- Monitors battery conditions and temperature for optional charging performance.
Solar Educational Videos
-
What type of charge controller do you need?
www.youtube.com/watch?v=CBKf3uKeu_I -
How many solar panels do you need?
www.youtube.com/watch?v=BLcs0h303xA&t=1s -
RV hall of famer Bob Livingston perspective – How does solar help? What does it really do?
www.youtube.com/watch?v=fkFLz3Kk6DQ&t=39s -
RV hall of famer Bob Livingston perspective – How do you reduce generator runtime? Why use a generator when you don’t really need to? Have you thought of solar?
www.youtube.com/watch?v=irW3uIj_6k0&t=34s -
Xantrex Lithium Ion battery app to view and monitor your battery state of charge & other important data.
www.youtube.com/watch?v=Y9H5-wYbA68
Additional Info
Top Features
-

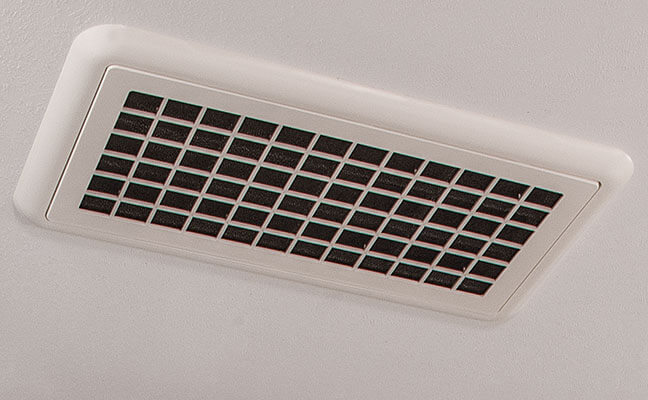

Two attic vents are in each RV, providing vital escape routes for unwanted moisture that accumulates during use.
-
E-Track universal track system with different fittings that allow you to quickly snap in and secure your load.
-
Heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear! R-11 sidewalls, R-38 roof and floor.
-

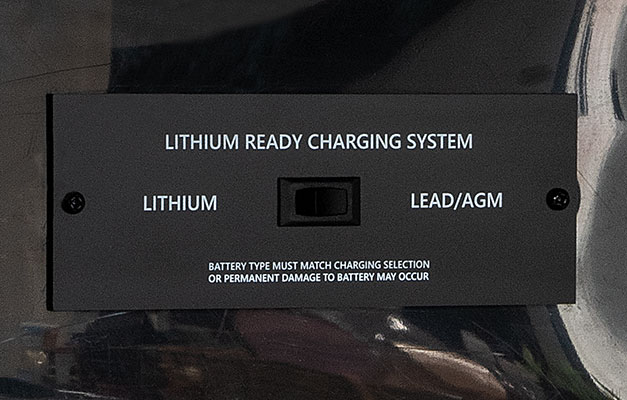

Lithium-ready charging station includes a dual converter, which allows you to choose between lithium or lead batteries with the flip of a switch!
-

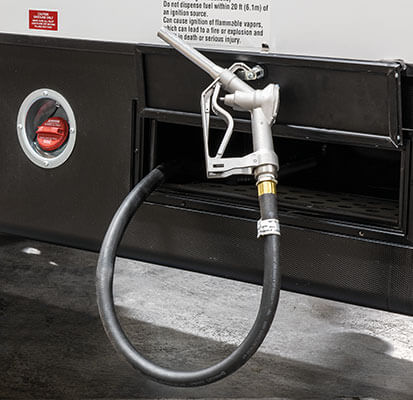

Pump station allows easy access to the 40-gallon tank. Generator prep includes a dedicated 30-gallon tank.
-

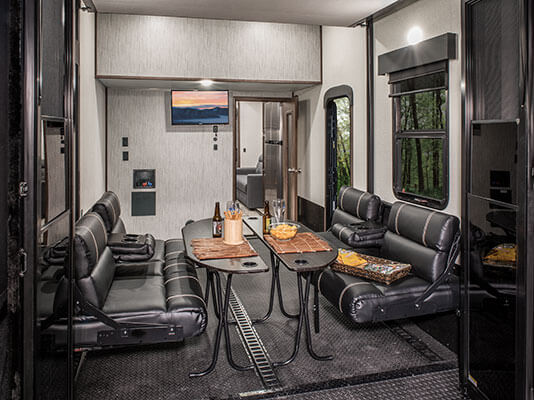

Quickly transform the garage from hauling your toys into a lounge area and a roomy bedroom, with optional 60 x 84-inch sit-and-sleep power bed. Add options like ramp door patio rails, three season patio door. (4113TK shown)
-
Tufflex Roofing by Dicor Products with 20-year warranty! More Info
-
Standard 3 x 14-inch foam-core in-floor straight-line heating system with 40K BTU furnace and three 15K BTU ducted roof A/Cs w/Whisper Quiet cooling system.
-
The KZ True 2 Warranty is a 2-year hitch-to-bumper limited warranty that’s true to its name. The gold standard in RV protection, True 2 provides double the coverage of the industry norm. Plus, our warranty is backed by the craftsmanship and quality we’re known for, so you can Go. Camp. Live. Wherever your adventure takes you, know that you’re covered in your KZ.
Standards and Options
-
Construction Features
- 101" Wide-Body Construction
- 6-Sided Aluminum Frame (including welded aluminum fore & aft floor joists, sidewall framing, & roof trusses)
- Extra Reinforced Heavy-Duty Front Fiberglass Cap
- Radius Aerodynamic Front Cap
- 2" x 3" Fully-Welded Aluminum Floor Framing
- 2" x 2" Fully-Welded Aluminum Sidewall Framing
- 5" Welded Aluminum Roof Trusses
- Lippert® Hydraulic Slide System w/Selector Valves
- 12" Powder-Coated Steel I-Beam w/Drop Frame (160 SQ FT pass-thru storage)
- Lamilux 4,000® High-Gloss Fiberglass Sidewalls
- All Weather Insulation Package to R38 (roof, floor, garage floor end caps, holding tanks)
- Double Insulated & Heated Holding Tanks (R38 above & below tanks)
- Additional Outside Frame-to-Wall Floor Insulation
- R11 2" Sidewalls (w/EGS metal backing strips)
- One-Piece ABS Slideroom Bottoms
- 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/20-Year Warranty - More Info
- 45-Degree Radius Aluminum Roof Edge
- Fully Vented Attic System
- 3/8" Fully Walk-On Roof Decking
- 5/8" Tongue & Groove Screwed & Glued Plywood Floor Decking
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains located above all insulation)
- Fully-Enclosed & Heated Underbelly w/Direct-Heated Holding Tanks
-
Exterior Features
- 7,000 LB Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
- 8-Lug Heavy-Duty Aluminum Rims w/16" G-Range Radial Tires
- 100% Exterior LED Running & Taillights
- Propane Bottles (2 x 30 LBS) on Same Side for Easy Access
- Sealed Battery Storage Compartment (no battery boxes required)
- Triple Front Slam-Latch Baggage Doors
- Side Slam-Latch Baggage Doors w/Dual Locks
- Fully Painted Front Cap w/LED Accent Lights
- Frameless Windows
- 3" x 14" In-Floor Straight Line Heating System
- Ramp Door w/LED Lighting
- LED Docking & Sewer Hookup Lights
- Sewer Hose Storage Tube
- Dual Swing-Away Assist Grab Handle
- Under-Frame Spare Tire w/Hoist
- Roof Ladder
- Heated Water Convenience Center (incl. black tank flush, power fresh tank water fill, winterizing system, outside shower, & dry-camping water siphon)
- Fully-Finished Heated & Sealed Basement Storage Compartment
- Camp Table & Patio Chairs Storage Compartment
- Heated & Enclosed Dump Valves
- Satellite Pre-Wire in Convenience Center & Roof
- LP Quick Connect
Kitchen Features
- Large Dining Table w/Removable Leaf & 2 Heavy-Duty Chairs (2 additional folding chairs 3911TK, 4114TK)
- Power Vent Kitchen Fan w/Wall Controls
- XL Residential Size Pullout Trashcan (where applicable)
- Removable Silverware Tray
- Under-Sink Storage Shelf
- OH Cabinets incl. Shelf & Extra-Tall Slide Lips
- Hidden Cabinet Door Hinges
- 5" Stainless Steel Cabinet Hardware
- Baltic Birch Drawer Boxes
- Heavy-Duty 100 LB Drawer Glides
- LED Kitchen Cabinet Toe-Kicks (where applicable)
- Kitchen Window (most models)
Interior Features
- 22 OZ Residential Carpet w/3/8" Re-bond Padding
- XL Ceiling Crown Molding
- 100% LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
- Extra-Large Light Switches
- Removable Pedestal Tables in Front of Seating (based on model)
Bedroom Features
- XL Deep Closet w/Shoe Storage Rack (3911TK, 4013TK)
- Dual Washer/Dryer Prep (stacked or combo)
- XL Under-Bed Storage
- Luxurious Bedspread & Pillow Shams
- Flat Panel TV on Swing Arm
Bath Features
- Residential One-Piece Fiberglass Shower Stall w/Glass Doors & Built-In Seat
- Shower Skylight
- XL Solid Surface Bath Vanity w/Stainless Steel Sink
- Porcelain Foot-Flush Toilet
- XL Linen Cabinet
- XL Deep Closet w/Shoe Storage Rack (3911TK & 4013TK)
- Extra-Wide Hallway & Pocket Door
- Power Vent w/Wall Switch
- Towel Bar & Towel Ring
Garage Features
- Roll-Down Screen Wall
- E-Track Tie-Down System
- Built-In Dovetail
- 24" Diamond Plate Wall Guards
- Garage Entry Door
- HD Flat Panel Garage TV on Swing Arm
- (2) Garage Ceiling Speakers
- Zero Gravity Ramp Door w/Easy-Lift Assist
-
Options
-
Exterior
- Dual Pane Windows (frameless)
- Wireless Backup Camera - Observation & Vision S
- “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")*
- Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
- Flex-Air Pin Box
- 2nd LED Lighted Power Awning
- Ramp Door Patio Package w/Step & Awning
- Three Season Patio Door IPO Screen Wall
- 7.0KW Gas Onan Generator
- 32" Exterior TV w/Bracket
-
Interior
- House Residential Refrigerator w/2,000W Inverter IPO 18 CU FT Gas/Electric Refrigerator (N/A CSA option)
- Power Vent Fan in Bathroom
- Power Vent Fan in 1/2 Bath (4013TK)
- Queen Pillowtop Mattress 60" x 80" (Elec. Tilt)
- Happi-Jac Power Bed w/Roll Over Sofas & Table
- Theater Seating w/Heat & Massage Features IPO Table w/Chairs (3911, 4114)
- *Cannot get Residential Refrigerator w/“Off the Grid” Solar Package
-
-
KZ Advantage Package (mandatory)
-
Exterior
- 6-Point Hydraulic Auto Leveling
- Polar White High Gloss Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- 6-Sided Aluminum Framing
- Flip-Up Entry Steps (main entry)
- 50 AMP Service
- (3) 15K Ducted A/Cs
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- X-Large Folding Grab Handle
- Undermount Spare Tire
- Trail-Air Rota Flex Pin Box
- Equa-Flex® Suspension
- Nitrogen-Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof Mounted Solar Prep w/Connection
- All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
- Roof Ladder
- Fully Vented Attic System w/2 Attic Vents
- Toy Lok®
- Generator Prep w/Dedicated 30 GAL Fuel Tank Plus 40 GAL Fuel Tank & Pump Station
- Retractable Screen Wall
- Pocket Door for Bathroom & Bedroom
- Leash Latch w/Bonus Beverage Opener
- Metal Latches on Baggage Doors
-
Interior
- Luxury Woven Vinyl Flooring in Slideouts (marine grade)
- Maple Glazed Cabinetry
- Glazed Solid Hardwood Slideout Fascia
- Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
- 24" Oven w/4 Burner Range
- 30" Convection Microwave
- Central Vac System w/Attachments
- Power Vent Fan in Main Area
- Super Sofa (select models)
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- LED TV
- Multiple Media Stereo w/DVD/Bluetooth
- JBL Performance Package (6 JBL speakers & sub-woofer)
- 12V Dual USB Charging Station
- Dual Day/Night Roller Shades
- Porcelain Foot-Flush Toilet
- Stainless Steel Bathroom Sink w/Waterfall Faucet
- Plywood Bed Base
- Electric Tilt King Bed 70" x 80"
- 32" Bedroom LED TV
- 40" LED TV in Garage Area
- Pocket Door for Bathroom & Bedroom
- Soft Auto Close Drawer Guides
- Soft Auto Close Hinges for Cabinet Doors
-
-
KZ Convenience Package (mandatory)
-
Exterior
- KZ Engage Powered by OneControl w/7" Screen (control system monitors tank levels & battery levels, controls sliderooms, leveling system, awnings, dimmable interior lighting, HVAC controls: includes Wi-Fi prep & Connect Anywhere Prep for full function access by mobile device & includes TPMS system prep)
- Power Awning w/LED Light Strip
- 16" G-Range Tires w/Aluminum Wheels
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/Wi-Fi Prep
- LED Lights in Exterior Speakers
-
Interior
- Residential Grade Linoleum
- 18 CU FT Gas/Electric Refrigerator w/Temperature Controls
- Matte Black Residential Kitchen Faucet w/Spring Sprayer
- Surfex Wood Step in FW Hallway
- Wood Trim on Corners/Entry Doors
- Vision S Prep (blind spot monitoring)
- 40,000 BTU Furnace
- On-Demand Tankless Water Heater - More Info
- Lithium Battery Ready
-
-
Bonus Feature
- 2-Year Limited Warranty (see flyer)
- One of the Lightest, High-Profile, Wide-Body, Luxury Toy Hauler Fifth Wheels in the Industry
- KZ has received the Dealer Satisfaction Index Award for 20 years
- KZ’s over 50 years of stable, dedicated manufacturing experience, coupled with its predominantly Amish workforce, heritage and commitment to superb quality, allow us to produce the lowest-priced luxury fifth wheel available
Due to continual research and advances, manufacturer reserves the right to change specifications, design, price, and equipment without notice, and assumes no responsibility for any error on this website. Some items shown are not included as standard or optional equipment.
