2" x 2" Fully-Welded Aluminum Sidewall Framing
Carefree® Electric Awning w/LED Lightbar (w/interior illuminated reminder switch)
100% Exterior LED Running & Taillights
Radius, Aerodynamic, Fully-Painted, Extra-Reinforced, Heavy-Duty Front Fiberglass Cap w/LED Accent Lights
Lamilux 4000® High-Gloss Fiberglass Sidewalls
Side Slam-Latch Baggage Doors w/Gas Struts & Dual Locks
Metal Skirt (covering the doorside frame)
5/8" Tongue & Groove Screwed & Glued Marine Grade Plywood Floor Decking
Double Insulated & Heated Holding Tanks (R38 above & below tanks)
Roto-Flex® Hitch Pin
Triple Front Slam-Latch Baggage Doors
12" Powder-Coated Steel I-Beam w/Drop Frame
Fully-Finished Heated & Sealed Basement Storage Compartment
Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains located above all insulation)
Aluminum 4-Step Entry w/LED Light
Trail Air Equaflex® Suspension
8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Radial Tires
7,000 LB Dexter® Axles w/Auto Adjusting Brakes & Height Adjusting Hangers
Fully-Enclosed & Heated Underbelly w/Direct-Heated Holding Tanks
Under-Frame Spare Tire w/Hoist
2" x 3" Fully-Welded 16" on Center Aluminum Floor Framing
Lippert® Hydraulic Slide System w/Selector Valves
One-Piece ABS Slideroom Bottoms (floors insulated to R24
Dual Swing-Away Assist Grab Handles
Frameless Windows Throughout
40-GAL Fuel Station w/Electric Pump
Satellite Pre-Wire in Convenience Center & Roof
Outside Speakers
Superflex® Roof Membrane (TPO/rubber hybrid, 12-year warranty)
Roof Ladder
R11 2" Sidewalls (w/EGS metal backing strips)
All Weather Insulation Package to R38 (roof, floor, garage floor, end caps, holding tanks)
6-Sided Aluminum Frame, incl. Welded Aluminum Fore & Aft Floor Joists, Sidewall Framing, & Roof Trusses
Fully-Vented Attic System
101" Wide Body Construction
6-Sided aluminum frame, including welded aluminum fore & aft floor joists, sidewall framing, & roof trusses
Extra Reinforced Heavy-Duty Front Fiberglass Cap
Radius Aerodynamic Front Cap
2" x 3" Fully-Welded Aluminum Floor Framing
2" x 2" Fully-Welded Aluminum Sidewall Framing
5" Welded Aluminum Roof Trusses
Lippert® Hydraulic Slide System w/Selector Valves
12" Powder-Coated Steel I-Beam w/Drop Frame (160 SQ FT Pass-Thru Storage)
Lamilux 4000® High-Gloss Fiberglass Sidewalls
All Weather Insulation Package to R38 (roof, floor, garage floor end caps, holding tanks)
Double Insulated & Heated Holding Tanks (R38 above & below tanks)
Additional Outside Frame-to-Wall Floor Insulation
R11 2" Sidewalls (w/EGS metal backing strips)
One-Piece ABS Slideroom Bottoms (floors insulated to R24)
Superflex® Roof Membrane (TPO/Rubber Hybrid, 12-year warranty)
45-Degree Radius Aluminum Roof Edge
Fully Vented Attic System

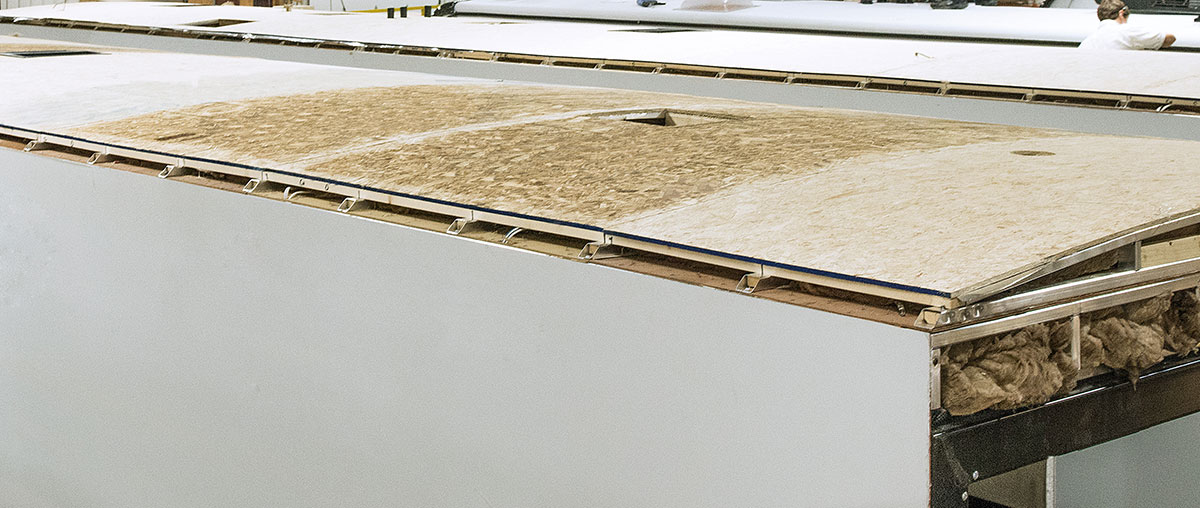

3/8" Fully Walk-On Roof Decking
5/8" Tongue & Groove Screwed & Glued Plywood Floor Decking
Metal Skirt (covering the doorside frame)
Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains located above all insulation)
Fully-Enclosed & Heated Underbelly w/Direct-Heated Holding Tanks
7,000 LB Dexter® Axles w/Auto Adjusting Brakes & Height Adjusting Hangers
8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Radial Tires
EZ Flex® Rubberized Suspension
Aluminum 3-Step Entry w/LED Light
Roto-Flex® Hitch Pin
100% Exterior LED Running & Taillights
Carefree® Electric Awning w/LED Light Bar (w/interior illuminated reminder switch)
Propane Bottles on Same Side for Easy Access
Sealed Battery Storage Compartment (no battery boxes required)
Triple Front Slam-Latch Baggage Doors
Side Slam-Latch Baggage Doors w/Gas Struts & Dual Locks
50 AMP Service w/Detachable Marine Power Cord
Fully Painted Front Cap w/LED Accent Lights
Frameless Windows Throughout
15,000 BTU Ducted Roof AC w/Quiet Cool (prewired for OPT ducted 15,000 BTU bedroom AC w/quiet cool)
Wired & Framed for OPT 3rd 15,000 BTU AC
35,000 BTU Furnace w/3" x 14" In-Floor Straight Line Heating System
12 GAL Gas/Electric Hot Water Heater
Dual-Function Bug/Flood LED Entry Door Floodlight
(2) LED Ramp Door Lights
LED Docking & Sewer Hookup Lights
Sewer Hose Storage Tube
Dual Swing-Away Assist Grab Handle
Under-Frame Spare Tire w/Hoist
Roof Ladder
Heated Water Convenience Center (incl. black tank flush, power fresh tank water fill, winterizing system, outside shower, & dry-camping water siphon)
Fully-Finished Heated & Sealed Basement Storage Compartment
Camp Table & Patio Chairs Storage Compartment
Heated & Enclosed Dump Valves
Battery Disconnect
Satellite Pre-Wire in Convenience Center & Roof
Outside Speakers
Generator Prep w/Surge Protector & Dedicated 30 GAL Fuel Tank
40 GAL Fuel Station w/Electric Pump
6-Point Hydraulic Auto Leveling System
2nd Lighted Power Garage Entry Door Awning
Dual Pane Frameless Windows
Onan® 5500 Gas Generator
15,000 BTU Bedroom AC
15,000 BTU Garage AC w/Load Management System
Slideout Cover Package
Goodyear G-14 G-Rated Tires
Backup Camera
Solid Surface Countertops, Flush-Mount Stove Covers & Sink Covers w/Large Handholds
Large Residential 60/40 Stainless Steel Sink
High-Arching, Pullout, Residential Metal Faucet
30" Microwave above Range
U.S. Made Large Dining Table w/Removable Leaf & 2 Heavy-Duty Chairs (2 additional folding chairs V3911TK)
Maxxair® Kitchen Fan w/Remote Controls
XL Pullout Trashcan
Built-In Silverware Tray
Under-Sink Storage Shelf
Adjustable Pantry Shelves (most models)
OH Cabinets incl. Shelf & Extra-Tall Slide Lips
Hidden Cabinet Door Hinges
4" Stainless Steel Cabinet Hardware
Baltic Birch Drawer Boxes
Heavy-Duty 100 LB Drawer Glides
LED Kitchen Cabinet Toe-Kicks
Kitchen Window (most models)
Full MyRV® Control System (monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, inside/outside lighting)
22 OZ Residential Carpet w/ 3/8" Re-bond Padding
XL Ceiling Crown Molding
Wood Slat Window Shades Throughout
100% LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
LED Rope Ambient Lighting
Extra-Large Light Switches
Faux Vinyl Soft Touch Ceiling
Deluxe Residential-Style Furniture
Removable Pedestal Tables in Front of Seating (based on model)
40" – 48" HD LED TV on Swing Arm w/Behind-TV Storage
Residential Entertainment System w/DVD/Radio/Bluetooth/Sound Bar & Bass Subwoofer
USB Charging Station & 12V Power Outlet
Theater Seat IPO Free-Standing Table & Chairs (V3911TK)
18 CU FT 120V Residential Refrigerator w/1000W Inverter
18 CU FT 4-Door RV Refrigerator (LP/Electric)
30" OTR Convection Oven/Microwave IPO OTR Microwave
Maxxair® Fan w/Remote Controls (bath, bedroom, garage)
Dual Interior Roller Shades
Fireplace w/Remote
Central Vacuum System
XL Deep Closet w/Shoe Storage Rack (V3911TK, V4013TK)
Dual Washer/Dryer Prep (stacked or side-by-side)
XL Under-Bed Storage
Luxurious Bedspread & Pillow Shams
32" HD Flat Panel TV on Swing Arm (w/speakers)
60" x 80" Queen-Size Cotton Cloud® Memory Foam Mattress w/Gel Top
72" x 80" King Size Cotton Cloud® Memory foam mattress w/Gel Top
48" One-Piece FG Shower Stall w/Glass Doors & Built-In Seat
Shower Skylight
XL Solid Surface Bath Vanity w/Stainless Steel Sink
Porcelain Foot-Flush Toilet
XL Linen Cabinet
XL Deep Closet w/Shoe Storage Rack (V3911TK & V4013TK)
Extra-Wide Hallway & Pocket Door
Power Vent w/Wall Switch
Towel Bar & Towel Ring
Roll-Down Screen Wall
E-Track Tie-Down System
Built-In Dovetail
24" Diamond Plate Wall Guards
Garage Entry Door
32" HD Flat Panel Garage TV on Swing Arm
12V Radio/DVD Player
(2) Garage Ceiling Speakers
Speaker On/Off Switches
HappiJac® Electric Bed & Rollover Sofa w/Table
Ramp Door Patio w/Entry Steps & w/Electric Awning
3-Season Patio Door IPO Roll-Down Screen Wall
Toy Lock
Removable Edged Garage Carpet Kit
2-Year Limited Warranty (see flyer)
One of the Lightest, High-Profile, Wide Body, Luxury Toy Hauler Fifth Wheels in the Industry
KZ has received the Dealer Satisfaction Index Award for 20 years
KZ’s over 50 years of stable, dedicated manufacturing experience, coupled with its predominant Amish workforce, heritage and commitment to superb quality, allow us to produce the lowest-priced luxury fifth wheel available.
Due to continual research and advances, manufacturer reserves the right to change specifications, design, price and equipment without notice, and assumes no responsibility for any error in this literature. Some items shown are not included as standard or optional equipment.
